GraphQL 极速入门

前言

​ 之前在自己的Blog项目 Blog++ 中使用了GraphQL，发现确实不错，所以写一篇关于GraphQL的入门文章。

What is GraphQL？

​ GraphQL是一种API查询语言，对API中的数据提供一套描述，使客户端能够准确地获得需要地数据。举个例子，在传统的RESTful API中，如果不对API做出声明，难以知道该API的用途，而且前端无法控制API返回的数据，而GraphQL就是对API的描述，并且前端能控制需要的数据，比如

// data
 var data = {id: "abcxdesss",title: "JS is best language in the world",publishTime: "2018-12-12",userId: "sundial dreams",context: "JS is best language in the world",readNumber: 20000,starNumber: 2000,commentId: "commentId"
 }


如果是RESTful API的话将会不多不少的返回所有字段，而如果使用GraphQL的话，就可以按需查询

query {queryArticle {title  # 标题publishTime # 发布时间context # 内容}
 }


将得到如下数据

{"queryArticle": {"title": "JS is best language in the world","publishTime": "2018-12-12","context": "JS is best language in the world"}
 }


当然这只是举个简单的例子，以下是总结的GraphQL的优点

1. 请求不多不少的数据
2. 一个请求即可获得多个资源
3. 类型系统
4. 有专门的调试工具
5. 维护API更容易

文章目录

本文将从以下几个方面来介绍GraphQL

GraphQL基本概念

Schema（服务端）

一个基本的Schema通过定义类型和类型字段来创建，比如

type User {name:String!age: Int!
 }


其中String, Int是类型，!表示该字段不能为null。

1. GraphQL内置的标量类型如下

2. 枚举类型

用enum关键字定义的类型

enum Color {GREENYELLOWREDBLUE
 }


3. 列表

用[]表示

type MQ {id: IDqueue: [String!]!
 }


注：[String]!表示整个列表不能为null，[String!]表示整个列表可以为null，但如果不为null，那么列表里就必须有值，[String!]!前两者的结合

4. 接口

用interface关键字来定义

interface Animal {name: String!
 }


实现接口

type Dog implements Animal {name: String!classify: String
 }


5. 联合类型

使用union定义的类型

union Result = AType | BType | CType


6. 输入类型

使用input定义的类型

input InputUser {name: String!age: Int!sex: Boolean!birthday: String!
 }


使用输入对象类型

type Mutation {createUser(user: InputUser): Result
 }


query & mutation查询（客户端）

使用查询来查询定义的Schema

1. query

类似于http的GET，基本语法非常简单，结构如下

query QueryName {query1 {field1field2}
 }


其中QueryName表示查询名，即这次查询的名称，主要用于消除歧义，或者让该查询意思更加清晰，不过也可以省略

来个具体的例子

Schema定义

type Article {title: String!context: String!publishTime: String!readNumber: Int
 }type Query {queryArticle: Article
 }


query查询

query {queryArticle {titlecontext}
 }


在http GET中可以使用?a=2&b=2这种形式通过GET请求将数据传给后端，同样的GraphQL的query也能，即带参查询

Schema定义

type Query {queryArticle(title: String!): Article
 }


query查询

query {queryArticle(title: "JS") {titlecontext}
 }


除此之外，还提供了别名操作，比如将queryArticle重命名

query {jsArticle: queryArticle(title: "JS") {title context}
 }


2. mutation

类似于http的POST，语法结构与query类似

mutation {mutation1 {field1field2}
 }


mutation主要是对后端数据的修改操作，就像POST一样，而query与GET一样只负责查询操作，除此之外与query还有一个主要区别：query是并行执行，而mutation是一个一个执行的

举个例子

Schema

type Error {msg: Stringerrno: Int!
 }
 type Mutation {createArticle(title: String!, context: String!): Error
 }


mutation

mutation {createArticle(title: "python async/await", context: "python async/await") {errno}
 }


3. 片段

复用重复的字段，即将重复的查询字段抽离成一个片段来复用，片段的定义使用fragment关键字，例如

注：必须与接口或联合类型结合使用

Schema

interface IAnimal {name: String!classify: String!
 }
 type Dog implements IAnimal{name: String!classify: String!moveSpeed: Int
 }
 type Bird implements IAnimal {name: String!classify: String!flySpeed: Int
 }
 type Query {queryAnimal: IAnimal
 }


query

query Animal {canfly: queryAnimal(classify: "canfly") {...Animal}canrun: queryAnimal(classify: "canrun") {...Animal}
 }
 fragment Animal on IAnimal {nameclassify
 }


4. 内联片段

用来去实现接口类型的字段，以上面的schame为例

query {queryAnimal(classify: "canrun") {nameclassify... on Dog {moveSpeed}}
 }


5. 变量

允许动态的将参数传入到query和mutation查询中

query Query($data: Data) {query1(data: $data) {field1field2}
 }


7. 指令

对字段的一系列操作

query {query1(condition: Boolean!) {field1 @skip(if: condition)field2 @include(if: condition)}
 }


其中@include(if: Boolean)仅在参数为true时包含此字段，@skip(if: Boolean)仅在参数为true时跳过此字段

GraphQL基本使用

基本使用

开始之前，我们需要安装graphql包

npm install --save graphql


开始一个最简单的例子

const graphql = require("graphql");
 const { buildSchema } = graphql;
 // 编写schema
 const schemaString = `type Article {id: ID!title: String!context: StringpublishTime: String!readNumber: IntstarNumber: IntUserId: ID!commentId: ID! }# 指定根查询type Query {queryArticle: Article}# 指定查询schema {query: Query}
 `;
 const schema = buildSchema(schemaString);
 // 定义query
 const query = `query {queryArticle {titlecontextpublishTime}}
 `;
 const data = {id: "abcxdesss",title: "JS is best language in the world",publishTime: "2018-12-12",userId: "sundial dreams",context: "JS is best language in the world",readNumber: 20000,starNumber: 2000,commentId: "commentId"
 };
 const rootValue = {// 解析函数，需要与schema 的 queryArticle一致queryArticle () {// 模拟API调用// 或者直接 return datareturn new Promise(resolve => {setTimeout(() => resolve(data), 1000)});}
 };
 graphql.graphql(schema, query, rootValue).then(({ data: { queryArticle } }) => queryArticle).then(console.log);


当然也可以写一个graphQL文件，然后将graphQL Schema都写入到文件里

gql.graphql文件

type Article {id: ID!title: String!context: StringpublishTime: String!readNumber: IntstarNumber: IntUserId: ID!commentId: ID!
 }
 type Query {queryArticle: Article
 }
 schema {query: Query
 }


main.js

function readFile (filename) {return fs.readFileSync(filename).toString();
 }
 const schema = buildSchema(readFile("./gql.graphql"));


除了使用GraphQL语法来构建Schema和query之外，还可以使用graphqljs来构建

比如

type User {id: ID!name: String!age: Intsex: Booleanhobby: [String!]
 }
 type Query {queryUser: [User!]
 }
 type Mutation {createUser(id: ID!, name: String!): User
 }
 schema {query: Querymutation: Mutation
 }


使用graphqljs来构建就是

const {graphql,GraphQLID,GraphQLNonNull,GraphQLObjectType,GraphQLSchema,GraphQLList,GraphQLBoolean,GraphQLString,GraphQLInt} = require("graphql");const UserType = new GraphQLObjectType({name: "User", // type Userfields: {id: { type: new GraphQLNonNull(GraphQLID) },name: { type: new GraphQLNonNull(GraphQLString) },age: { type: GraphQLInt },sex: { type: GraphQLBoolean },hobby: { type: new GraphQLList(new GraphQLNonNull(GraphQLString)) }}
 });
 const QueryType = new GraphQLObjectType({name: "Query",fields: {queryUser: {type: new GraphQLList(new GraphQLNonNull(UserType)),resolve (_) { // 为该字段定义一个解析函数return [{ id: "user1", name: "sundial dreams", hobby: ["sleeping"], age: 21, sex: true },{ id: "user2", name: "daydreams", hobby: ["coding", "movie", "game"] },]}}}
 });
 const MutationType = new GraphQLObjectType({name: "Mutation",fields: {createUser: {type: UserType, // 即返回值类型args: { // 即函数参数id: { type: new GraphQLNonNull(GraphQLID) },name: { type: new GraphQLNonNull(GraphQLString) }},resolve (_, { id, name }) {// 为该字段定义一个解析函数console.log(id, name);return {id, name, age: 21, sex: true, hobby: ["code"]}}}}
 });const schema = new GraphQLSchema({types: [UserType], // ！！！注册类型query: QueryType,mutation: MutationType
 });const query = `query {user: queryUser {idnamehobby}
 }`;
 const mutation = `mutation {createUser(id: "user3", name: "dpf") {idname}
 }`;
 graphql(schema, query).then(({ data: { user } }) => user).then(console.log);


使用上面这种方式构建schema的好处就是比较清晰，而且可以基于nodejs模块化机制，将schema模块化构建

更多实例

接口

接口Schema定义如下

  interface IAnimal {name: String!classify: String!}type Dog implements IAnimal {name: String!classify: String!move: String}type Bird implements IAnimal {name: String!classify: String!fly: String}type Query {queryAnimal(classify: String!): IAnimal}schema {query: Query}


定义两个query查询如下

# 内联查询
 query InlineQuery {queryAnimal(classify: "move") {name... on Dog {move}}
 }# 片段 + 内联查询
 fragment animalFragment on IAnimal {nameclassify
 }query FragmentQuery {queryAnimal(classify: "fly") {...animalFragment... on Bird {fly}}
 }

使用graphql包来构建类型，如下

const {graphql,GraphQLSchema,GraphQLString,GraphQLNonNull,GraphQLObjectType,GraphQLInterfaceType} = require("graphql");
 // 公共字段
 const animalFields = {name: { type: new GraphQLNonNull(GraphQLString) },classify: { type: new GraphQLNonNull(GraphQLString) }
 };const AnimalInterface = new GraphQLInterfaceType({name: "IAnimal",fields: animalFields,resolveType (value) { // !!! 需要对接口类型进行运行期转换console.log(value); // value 就是 queryAnimal 传过来的// 根据 value返回不同的值if (value.hasOwnProperty("fly")) return BirdType;if (value.hasOwnProperty("move")) return DogType;return null;}}
 );const DogType = new GraphQLObjectType({name: "Dog",fields: {...animalFields,move: { type: GraphQLString }},interfaces: [AnimalInterface] // 实现接口
 });const BirdType = new GraphQLObjectType({name: "Bird",fields: {...animalFields,fly: { type: GraphQLString }},interfaces: [AnimalInterface] // 实现接口
 });const QueryType = new GraphQLObjectType({name: "Query",fields: {queryAnimal: {type: AnimalInterface,args: {classify: { type: new GraphQLNonNull(GraphQLString) }},resolve (_, { classify }) {// 解析函数console.log(classify);if (classify === "fly") return {name: "bird",classify,fly: "i can fly"};else if (classify === "move") return {name: "dog",classify,move: "i can move"};}}}
 });const schema = new GraphQLSchema({types: [AnimalInterface, DogType, BirdType],query: QueryType
 });const query = `
 # 内联查询
 query InlineQuery {queryAnimal(classify: "move") {name... on Dog {move}}
 }
 `;
 const query2 = `
 # 片段 + 内联查询
 fragment animalFragment on IAnimal {nameclassify
 }query FragmentQuery {queryAnimal(classify: "fly") {...animalFragment... on Bird {fly}}
 }
 `;
 graphql(schema, query).then(console.log);

联合类型

Schema定义如下

type A {a: String
 }
 type B {b: String
 }
 type C {c: String
 }
 union AllType = A | B | C
 type Query {queryAll: [AllType]
 }
 schema {query: Query
 }


定义一个query查询

query UnionQuery {queryAll {... on A {a}... on B {b}... on C {c}}
 }


使用graphqljs来构建，如下

const {graphql,GraphQLSchema,GraphQLString,GraphQLNonNull,GraphQLObjectType,GraphQLInterfaceType,GraphQLUnionType,GraphQLList} = require("graphql");
 const AType = new GraphQLObjectType({name: "A",fields: {a: { type: GraphQLString }}
 });
 const BType = new GraphQLObjectType({name: "B",fields: {b: { type: GraphQLString }}
 });
 const CType = new GraphQLObjectType({name: "C",fields: {c: { type: GraphQLString }}
 });const AllTypeUnion = new GraphQLUnionType({name: "AllType",types: [AType, BType, CType], // 联合类型resolveType (value) {if (value.hasOwnProperty("a")) return AType;if (value.hasOwnProperty("b")) return BType;if (value.hasOwnProperty("c")) return CType;return null;}
 });
 const Query = new GraphQLObjectType({name: "Query",fields: {queryAll: {type: new GraphQLList(AllTypeUnion),resolve () {return [{ a: "hello world" },{ b: "main() {}" },{ c: "sundial dreams" }]}}}
 });
 const schema = new GraphQLSchema({types: [AType, BType, CType, AllTypeUnion],query: Query
 });
 const query = `
 query UnionQuery {all: queryAll {... on A {a}... on B {b}... on C {c}}
 }
 `;
 graphql(schema, query).then(({ data: { all } }) => all).then(console.log);


搭建一个GraphQL服务

会写Schema，那么搭建GraphQL服务就非常简单了，不过还得使用express-graphql包

安装express express-graphql

npm install --save express express-graphql


基本使用

// main.js

const express = require("express");
 const graphqlHTTP = require("express-graphql");
 const schema = require("./graphql");
 const app = express();
 app.use("/graphql", graphqlHTTP({schema,graphiql: true // 启用GraphQL调试器
 }));
 app.listen(8000, err => console.log(err || "listen in 8000"));


// graphql.js 复用之前的例子

const {graphql,GraphQLSchema,GraphQLString,GraphQLNonNull,GraphQLObjectType,GraphQLInterfaceType,GraphQLUnionType,GraphQLList} = require("graphql");
 const animalFields = {name: { type: new GraphQLNonNull(GraphQLString) },classify: { type: new GraphQLNonNull(GraphQLString) }
 };
 const AnimalInterface = new GraphQLInterfaceType({name: "IAnimal",fields: animalFields,resolveType (value) { // !!! 需要对接口类型进行运行期转换console.log(value); // value 就是 queryAnimal 传过来的// 根据 value返回不同的值if (value.hasOwnProperty("fly")) return BirdType;if (value.hasOwnProperty("move")) return DogType;return null;}}
 );const DogType = new GraphQLObjectType({name: "Dog",fields: {...animalFields,move: { type: GraphQLString }},interfaces: [AnimalInterface] // 实现接口
 });const BirdType = new GraphQLObjectType({name: "Bird",fields: {...animalFields,fly: { type: GraphQLString }},interfaces: [AnimalInterface] // 实现接口
 });const QueryType = new GraphQLObjectType({name: "Query",fields: {queryAnimal: {type: AnimalInterface,args: {classify: { type: new GraphQLNonNull(GraphQLString) }},resolve (_, { classify }) { // 解析函数console.log(classify);// 模拟异步操作return new Promise((resolve, reject) => {setTimeout(() => { // 延时一秒if (classify === "fly") resolve({name: "bird",classify,fly: "i can fly"});else if (classify === "move") resolve({name: "dog",classify,move: "i can move"});}, 1000);});});}}}
 });module.exports = new GraphQLSchema({types: [AnimalInterface, DogType, BirdType],query: QueryType
 });

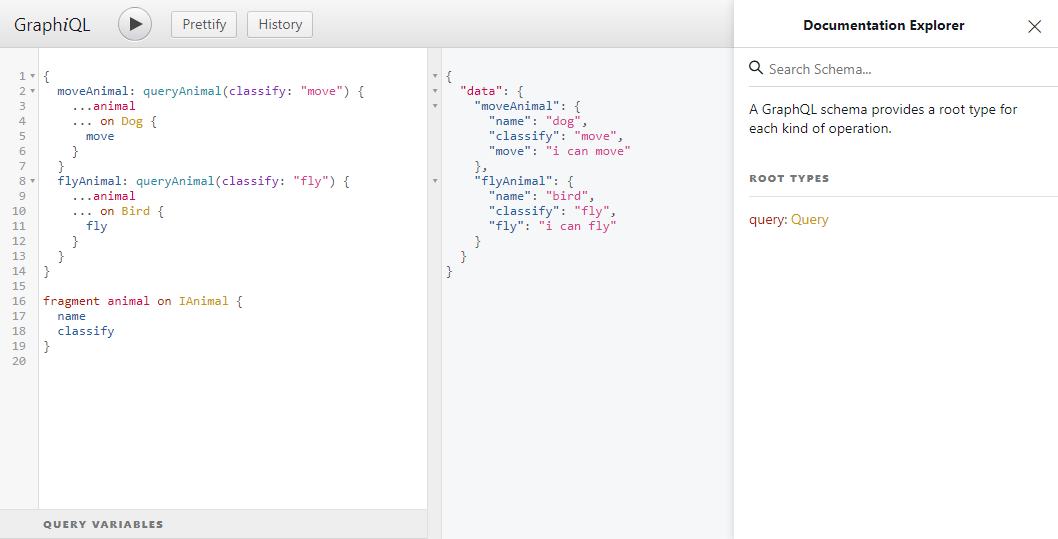

可以在浏览器地址栏上输入 localhost:8000/graphql打开调试器

调试器功能比较丰富，比如支持提示，美化查询，历史记录等等，读者可以自行体验

更多参考

graphql官网：https://graphql.cn/learn/

graphqljs：https://graphql.cn/graphql-js/

express-graphql：https://graphql.cn/graphql-js/running-an-express-graphql-server/

工具类

Apollo Client(React 的 GraphQL客户端， 同样支持Vue Angular等)：https://www.apollographql.com/docs/react/

Relay(React 的GraphQL客户端): https://relay.dev/docs/en/introduction-to-relay
