TimeLine 对Spine动画拓展

因为公司需要对Spine动画特效制作时间线控制特效生成、动画、摄像机移动，故对TimeLine做了一点拓展，网上也没什么相关文章故在此记录下。

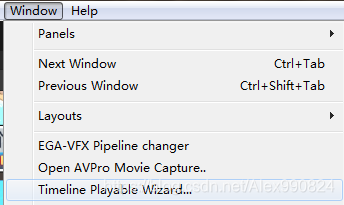

Defualt Playables

巨好用的插件

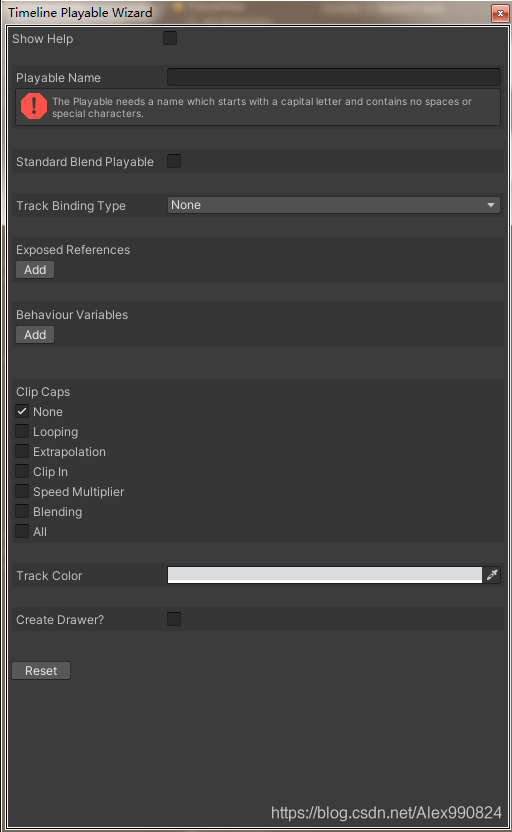

可以自定义生成自己想要的类型 并生成对应的五篇代码 我们在代码上拓展就能实现自己想要的功能了。


///show help 是否打开帮助提示 很贴心

///Playable Name 自定义轨道的名字

///是否创建标准的可混合的Playable
选没选中，区别在于：
选中，Track Binding Type 可以选择： 可实例化，并继承自 UnityEngine.Component 的所有类。
没选，Track Binding Type 可以选择：继承自 UnityEngine.Component 的所有类外，还可以选中GameObject，与null，的额外两种。

///Track Binding Type 挂载的“导演”类型

///Exposed References 加入的物件 提供很多可选

///Behaviour Variables 加入的参数

///Clip Caps 轨道混合模式 可以选择 也可以后面用代码控制

///Track Color 轨道的颜色 没什么调用

///Create Drawer 提供给你一个调色盘

///Reset键就是复位

话不多说 直接上代码

SpineTrackBehaviou【主要用于控制每个track的表现】

using System;
 using UnityEngine;
 using UnityEngine.Playables;
 using UnityEngine.Timeline;
 using Spine.Unity;[Serializable]
 public class SpineTrackBehaviour : PlayableBehaviour
 {public string palyAnimation;public string endAnimation;private PlayableDirector pd;private SkeletonAnimation SKA;public override void OnPlayableCreate (Playable playable){this.pd = (PlayableDirector)playable.GetGraph().GetResolver();foreach (var track in pd.playableAsset.outputs){if (this.SKA == null && track.streamName == "Spine Track Track"){this.SKA = (SkeletonAnimation)pd.GetGenericBinding(track.sourceObject);}}}public override void OnBehaviourPlay(Playable playable, FrameData info){if (palyAnimation==string.Empty ||endAnimation==string.Empty){return;}this.SKA.AnimationState.ClearTrack(0);Spine.TrackEntry trackEntry = this.SKA.AnimationState.SetAnimation(0, palyAnimation, false);trackEntry.Complete += (Spine.TrackEntry trackEntry) => {this.SKA.AnimationState.SetAnimation(0, endAnimation, true);};}}


SpineTrackClip【处理属性 ClipCaps为混合模式可修改】

using System;
 using UnityEngine;
 using UnityEngine.Playables;
 using UnityEngine.Timeline;
 using Spine.Unity;[Serializable]
 public class SpineTrackClip : PlayableAsset, ITimelineClipAsset
 {public SpineTrackBehaviour template = new SpineTrackBehaviour ();public ClipCaps clipCaps{get { return ClipCaps.None; }}public override Playable CreatePlayable (PlayableGraph graph, GameObject owner){var playable = ScriptPlayable.Create (graph, template);SpineTrackBehaviour clone = playable.GetBehaviour ();return playable;}}


SpineTrackMixerBehaviour【我的理解是在播放过程中执行的改变 可以参考插件demo中的灯光Mix】

using System;
 using UnityEngine;
 using UnityEngine.Playables;
 using UnityEngine.Timeline;
 using Spine.Unity;public class SpineTrackMixerBehaviour : PlayableBehaviour
 {// NOTE: This function is called at runtime and edit time.  Keep that in mind when setting the values of properties.public override void ProcessFrame(Playable playable, FrameData info, object playerData){SkeletonAnimation trackBinding = playerData as SkeletonAnimation;if (!trackBinding)return;int inputCount = playable.GetInputCount ();for (int i = 0; i < inputCount; i++){float inputWeight = playable.GetInputWeight(i);ScriptPlayable inputPlayable = (ScriptPlayable)playable.GetInput(i);SpineTrackBehaviour input = inputPlayable.GetBehaviour ();// Use the above variables to process each frame of this playable.}}
 }

SpineTrackTrack

using UnityEngine;
 using UnityEngine.Playables;
 using UnityEngine.Timeline;
 using Spine.Unity;[TrackColor(0.855f, 0.8623f, 0.87f)]
 [TrackClipType(typeof(SpineTrackClip))]
 [TrackBindingType(typeof(SkeletonAnimation))]
 public class SpineTrackTrack : TrackAsset
 {public override Playable CreateTrackMixer(PlayableGraph graph, GameObject go, int inputCount){return ScriptPlayable.Create (graph, inputCount);}
 }
